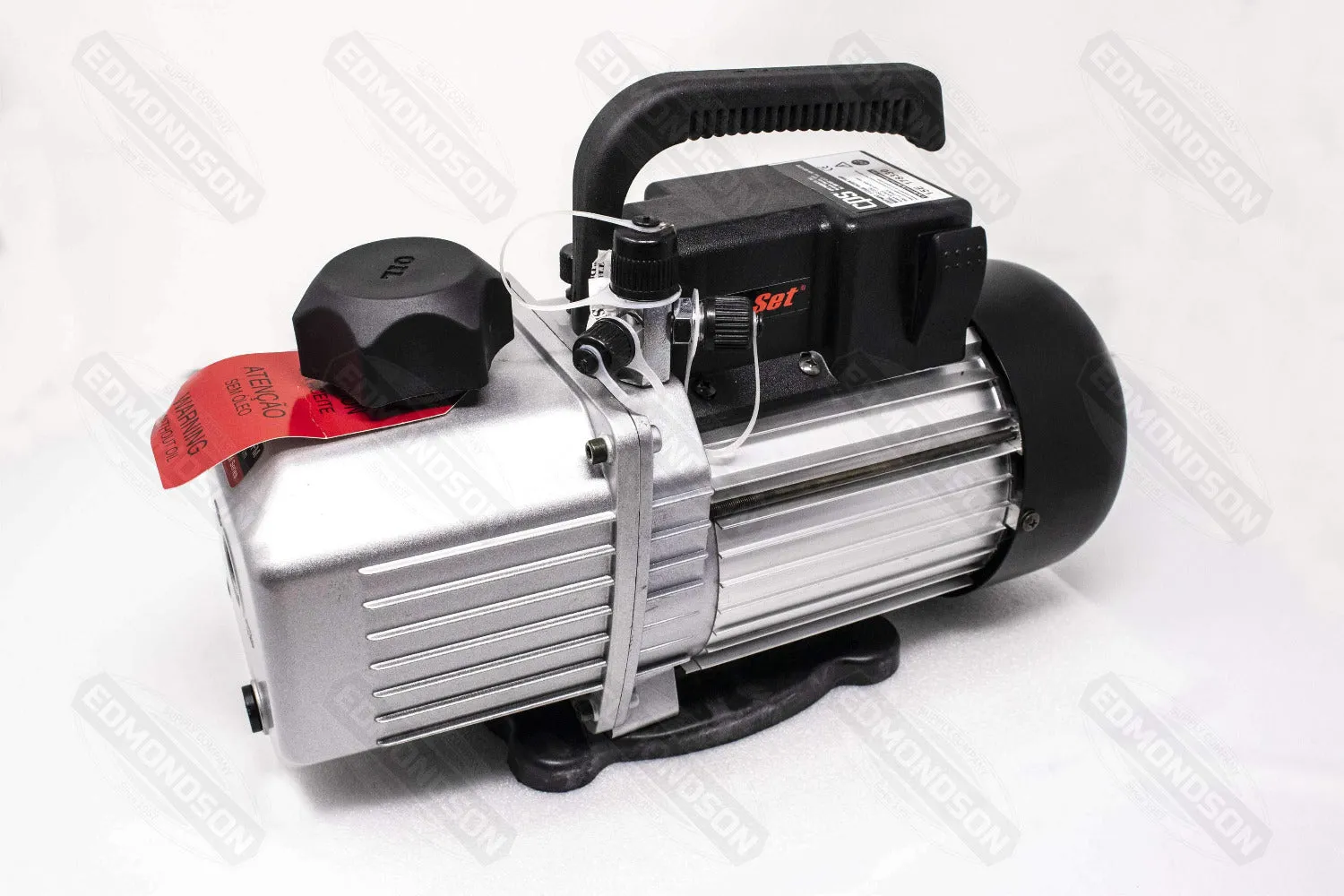

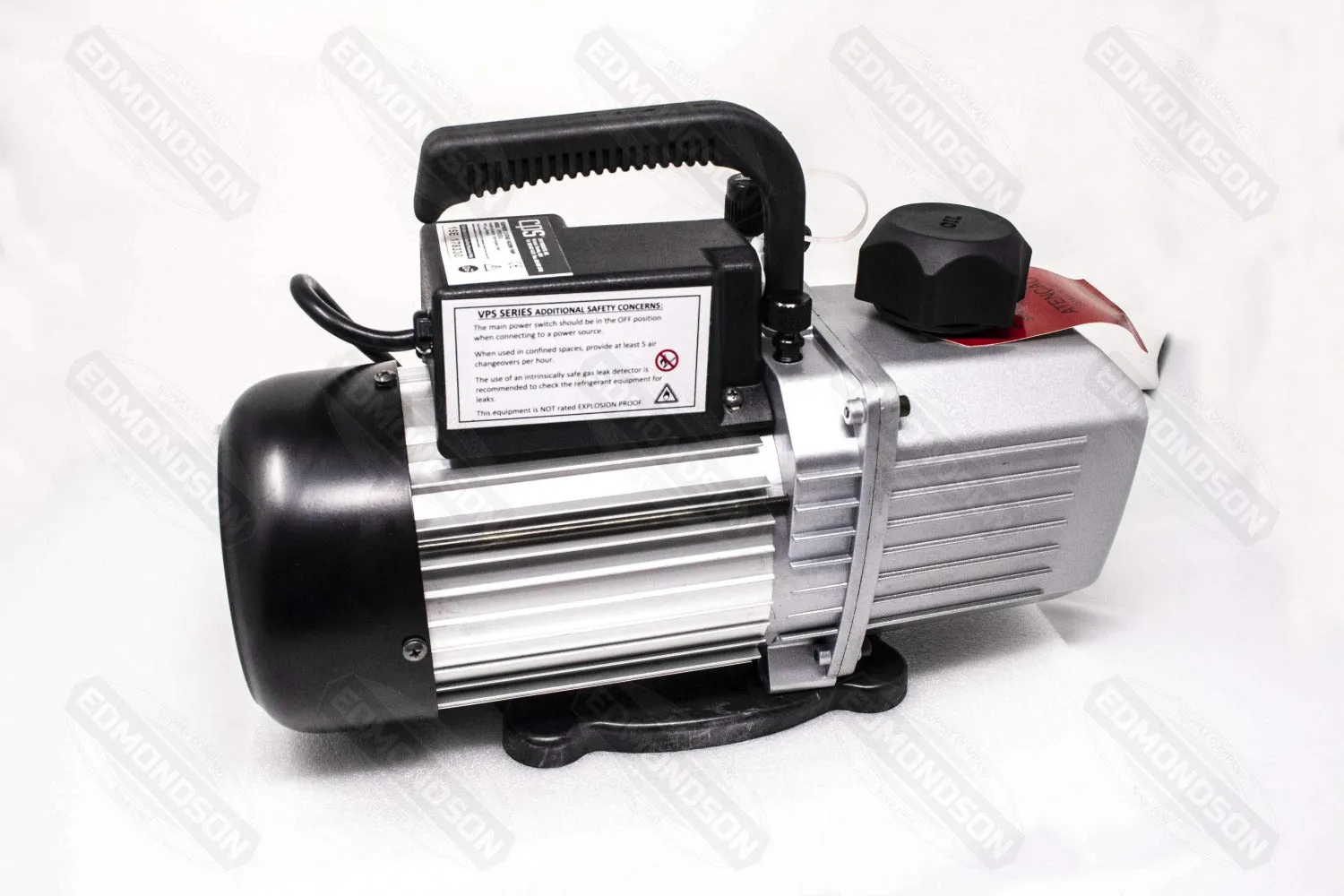

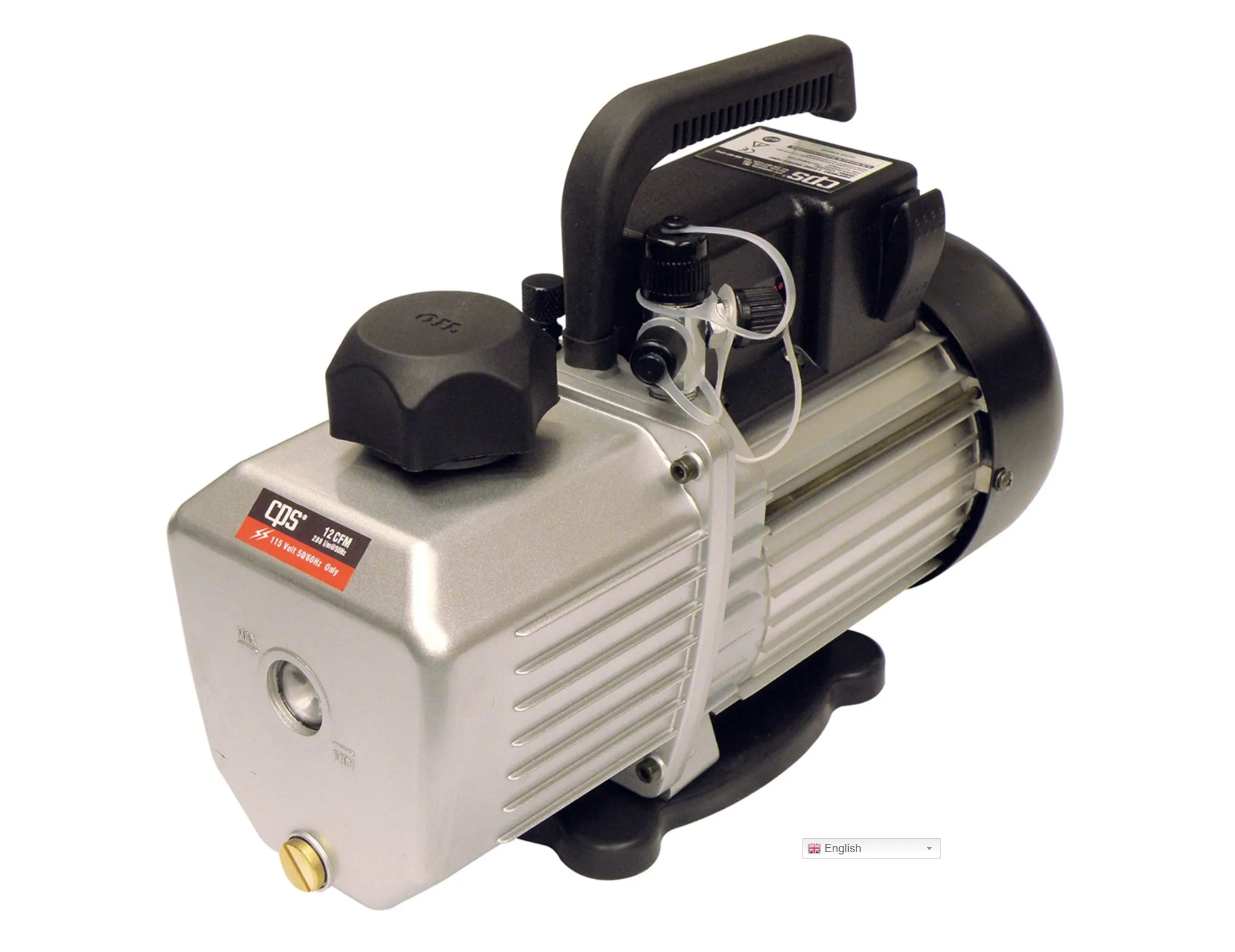

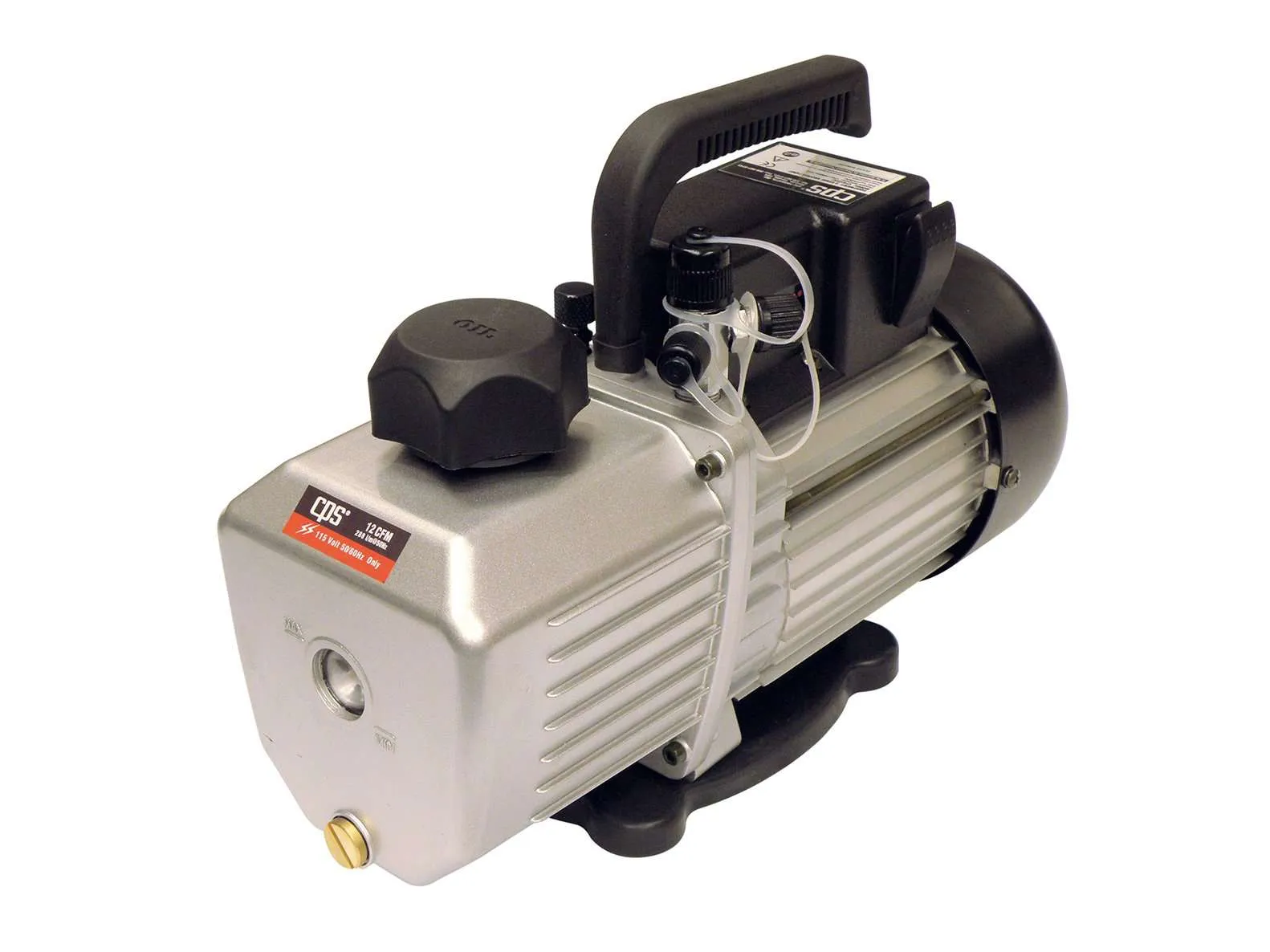

CPS Products VPS12DU Pro-Set® 12CFM Sparkless Ignition Proof Vacuum Pump
Products usually ship within 1 business day.
CPS introduces another addition to the Pro-Set vacuum pump line-up with the VPS series. An efficient, lightweight and reliable vacuum pump, that meets ANSI ignition proof standards.
KEY FEATURES
- Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
- For use on refrigeration systems utilizing Class A1 (nontoxic, nonflammable), Class A2L (nontoxic, low flammability), Class A2 (nontoxic, flammable), and Class A3 (nontoxic, flammable) and Ammonia (NH3)
- Air cooled, thermally protected motors encased in a durable aluminum housing
- Oil filled rotary vacuum pump cartridge construction
- Combination oil fill/exhaust port utilizes CPS exclusive oil mist free exhaust cap
- Large double sealed oil sight glass
- Sealed start relay
- Steel inlet port with multiple intake sizes (1/4, 3/8 & 1/2 SAE), Ammonia compatible
- Ignition proof ON-OFF switch
- Rubber lined handle, skid resistant rubber base
- Gas ballast valve for deeper vacuum
- UL listed
SPECIFICATIONS
| Stage: | 2 |
| Ultimate Vacuum: | 25 Microns |
| Refrigerant Class: | A1, A2, A3 |
| Dimensions: | 14.9″ x 5.7″ x 10.6″ |
| Weight: | 30.9 lb (14.0 kg) |
| Free Air Displacement: | 12 CFM @ 60 Hz |
| Motor Size (HP)RPM @ 50 / 60 Hz: | 1 HP 3440 RPM |
| Voltage: | 115V, 60Hz |
| Power Connection to Pump: | 10’ Hard wired |
| Oil Capacity: | 27 oz (800 ml) |
